使用Headscale搭建开源版Tailscale服务端

相信大家对wireguard已经不陌生了。作为一种搭建虚拟局域网的工具，相比于传统VPN而言，所有节点之间都可以进行P2P连接，也就是全互联模式，效率更高。而wireguard本身只是一个内核级别的模块，只是一个数据平面，至于上层更高级的功能（比如密钥交换机制，UDP打洞，ACL等），需要通过用户空间的应用来实现。

本文主要介绍Headscale和Tailscale。

本文与2023年9月10日第二次更新。

本文与2023年10月5日第三次更新。

前言

为了基于wireguard实现更完美的VPN工具，现在已经出现了很多项目，如Netmaker，通过可视化界面来配置全互联模式，并支持UDP打洞、多租户等高端功能，几乎适配所有平台。然而现实世界是复杂的，无法保证所有的NAT都能打洞成功，而且Netmaker目前不支持fallback机制，如打洞失败，无法fallback中继节点。而Tailscale支持fallback，可以尽最大努力实现全互联模式，部分节点即使打洞不成功，也可通过中继节点在虚拟局域网内畅通无阻。

什么是Tailscale

Tailscale是一种基于Wireguard的虚拟组网工具，和Netmaker最大的区别是在用户态实现了wireguard协议，而netmaker直接实现了内核态的wireguard。想比内核态的wireguard性能会有些损失，但是功能性和易用性上完爆其他工具：

1. 开箱即用
   • 无需配置防火墙
   • 没有额外的配置
2. 高安全性/私密性
   • 自动密钥轮换
   • 点对点连接
   • 支持用户审查端到端的访问记录
3. 在原有的ICE、STUN等UDP协议外，还实现了DERP TCP协议来实现NAT穿透
4. 基于公网的控制服务器下发ACL和配置，实现了节点动态更新
5. 通过第三方（如Google）SSO服务生成用户和私钥，实现身份认证。

我们可以将Tailscale视为更易用、功能更完善的Wireguard

安装Tailscale

1. 打开Tailscale官网

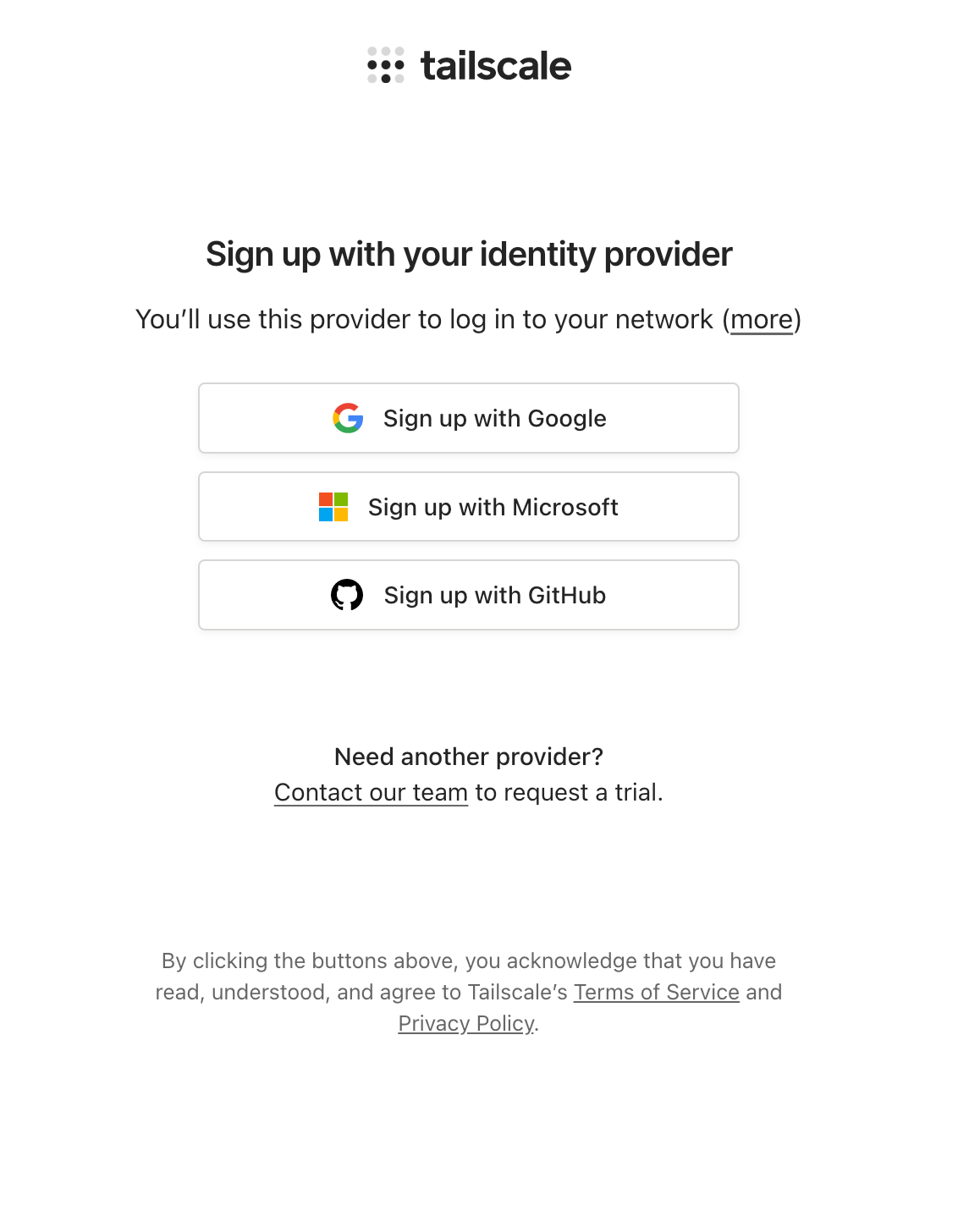

2. 在不付费的情况下只能通过SSO进行登陆。

Mac OS客户端接入

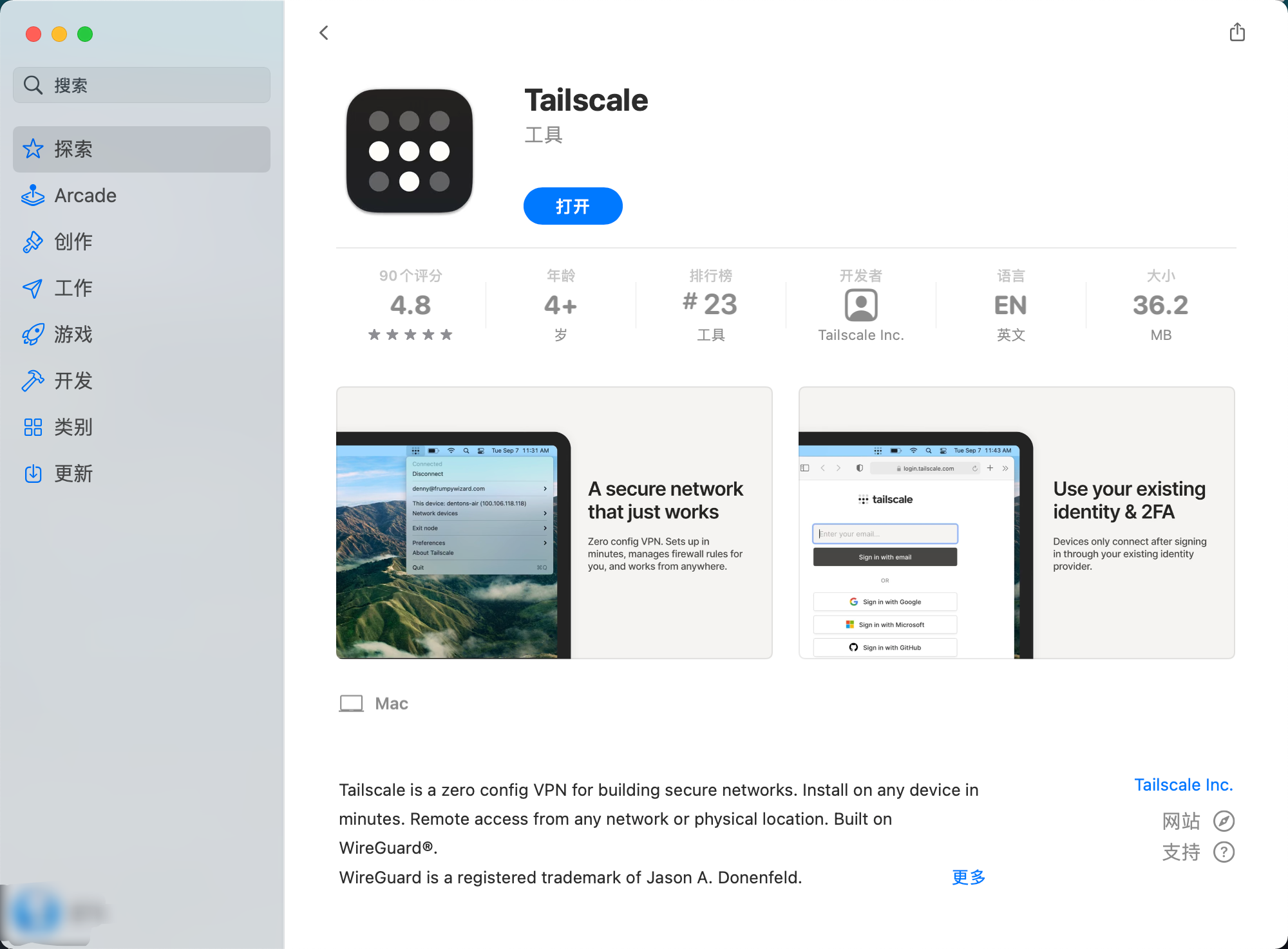

3. 安装Tailscale客户端，mac系统下可能需要一个美区的ID。

• 如果没有美区ID，还可以下载安装包直接安装，传送门

⚠️两种方式只能安装一种。

• 还可以安装开源命令行工具 tailscale 和 tailscaled，传送门

三种安装方式的比较

	应用商店	独立应用	命令行版本
是否可用	yes	yes, beta	yes
图形界面	yes	yes	no; CLI
macOS 最低版本	macOS 10.13	macOS 10.15	macOS 10.13
后台运行	no; sandboxed	理论上支持; 尚未实现	yes
使用的钥匙串🔑	用户级	系统级	直接存放在文件中
沙盒隔离	yes	no	no
自动更新	yes; 应用商店直接更新	yes; Sparkle	no
是否开源	no	no	yes
MagicDNS	yes	yes	yes
Taildrop	yes	yes	未实现

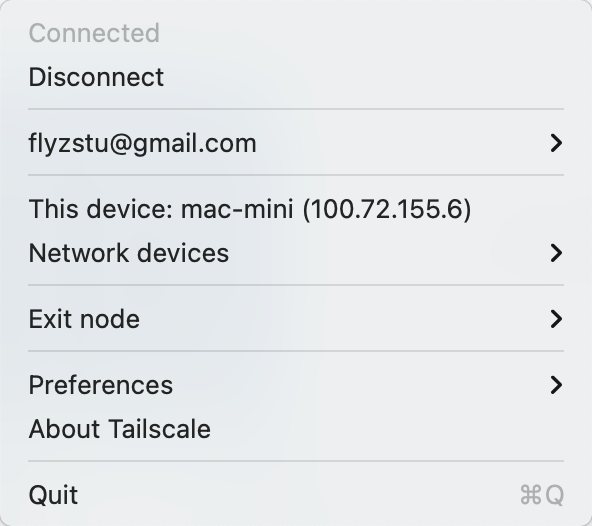

4. 登陆成功的页面

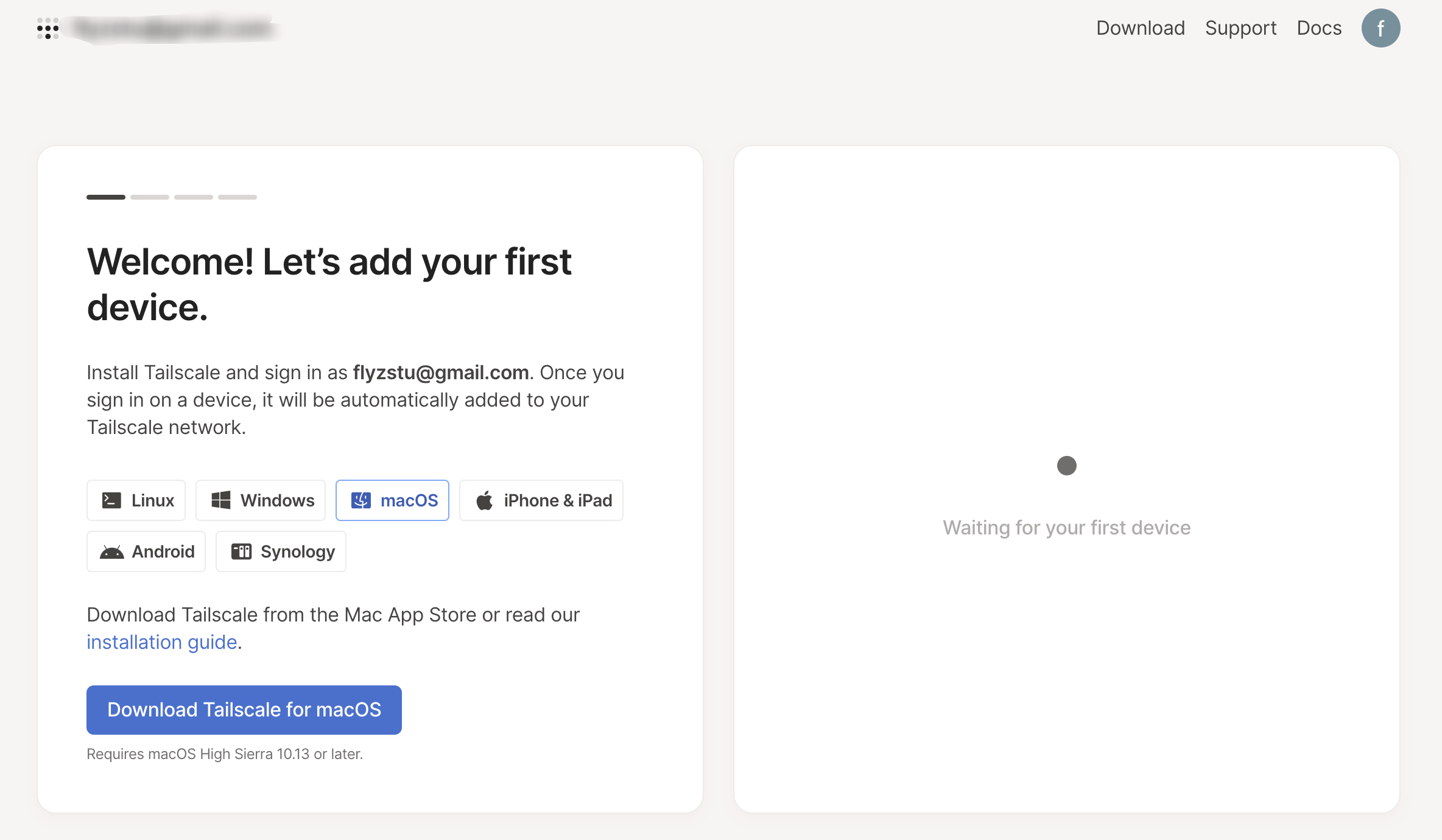

5. 查看后台

Linux 客户端接入

6. 下载编译好的Linux客户端，传送门

7. 解压

deepsoft01@deepsoft-desktop:~$ tar zxvf tailscale*.tgz
tailscale_1.26.1_amd64/
tailscale_1.26.1_amd64/tailscale
tailscale_1.26.1_amd64/tailscaled
tailscale_1.26.1_amd64/systemd/
tailscale_1.26.1_amd64/systemd/tailscaled.defaults
tailscale_1.26.1_amd64/systemd/tailscaled.service

8. 复制二进制文件到PATH目录

sudo install tailscale*/tailscaled /usr/sbin/tailscaled
sudo install tailscale*/tailscale /usr/local/bin/tailscale

9. 设置systemd单元文件

sudo cp tailscale*/systemd/tailscaled.service /lib/systemd/system/tailscaled.service

10. 设置环境变量配置文件

sudo cp tailscale*/systemd/tailscaled.defaults /etc/default/tailscaled

11. 启动tailscaled服务并设置开机自动启动

sudo systemctl enable --now tailscaled

12. 查看服务启动状态

systemctl status tailscaled

13. 接入网络

sudo tailscale up --accept-routes=true --accept-dns=false --advertise-routes=192.168.31.0/24 --authkey xxx

• accept-routes：允许别的设备路由到此设备

• advertise-routes：向所有设备通告本地路由

• authkey：非交互接入的key，在控制台Setting可以添加

14. 查看网络接入状态

Windows 客户端接入

下载地址：https://pkgs.tailscale.com/stable/#static

什么是Headscale

Tailscale是一款商用产品，对个人提供免费服务，就个人而言完全够用，但是后端服务器全在国外，而且免费用户只能使用SSO登陆，非常不方便。

有人认为Tailscale后台不开源也不透明，于是自行开发了一套后端，命名为Headscale。这套后端完全开源，可自行部署。

部署Headscale

项目地址：https://github.com/juanfont/headscale

理论上说只要你的Headscale服务可以暴露到公网出口就行，但是不要有NAT，所以推荐部署到有公网IP的云主机上。

systemd部署

1. 下载服务端

这里请根据服务器的架构进行选择

https://github.com/juanfont/headscale/

2. 创建配置

# 创建文件夹
mkdir -p /etc/headscale
# 存储数据与证书
touch /var/lib/headscale/db.sqlite
# 创建空的sqlite文件
touch /var/lib/headscale/db.sqlite

3. 创建Headscale配置文件

配置文件的示例

---
# headscale will look for a configuration file named `config.yaml` (or `config.json`) in the following order:
#
# - `/etc/headscale`
# - `~/.headscale`
# - current working directory

# The url clients will connect to.
# Typically this will be a domain like:
#
# https://myheadscale.example.com:443
#
server_url: http://127.0.0.1:8080

# Address to listen to / bind to on the server
#
# For production:
# listen_addr: 0.0.0.0:8080
listen_addr: 127.0.0.1:8080

# Address to listen to /metrics, you may want
# to keep this endpoint private to your internal
# network
#
metrics_listen_addr: 127.0.0.1:9090

# Address to listen for gRPC.
# gRPC is used for controlling a headscale server
# remotely with the CLI
# Note: Remote access _only_ works if you have
# valid certificates.
#
# For production:
# grpc_listen_addr: 0.0.0.0:50443
grpc_listen_addr: 127.0.0.1:50443

# Allow the gRPC admin interface to run in INSECURE
# mode. This is not recommended as the traffic will
# be unencrypted. Only enable if you know what you
# are doing.
grpc_allow_insecure: false

# Private key used to encrypt the traffic between headscale
# and Tailscale clients.
# The private key file will be autogenerated if it's missing.
#
private_key_path: /var/lib/headscale/private.key

# The Noise section includes specific configuration for the
# TS2021 Noise protocol
noise:
  # The Noise private key is used to encrypt the
  # traffic between headscale and Tailscale clients when
  # using the new Noise-based protocol. It must be different
  # from the legacy private key.
  private_key_path: /var/lib/headscale/noise_private.key

# List of IP prefixes to allocate tailaddresses from.
# Each prefix consists of either an IPv4 or IPv6 address,
# and the associated prefix length, delimited by a slash.
# It must be within IP ranges supported by the Tailscale
# client - i.e., subnets of 100.64.0.0/10 and fd7a:115c:a1e0::/48.
# See below:
# IPv6: https://github.com/tailscale/tailscale/blob/22ebb25e833264f58d7c3f534a8b166894a89536/net/tsaddr/tsaddr.go#LL81C52-L81C71
# IPv4: https://github.com/tailscale/tailscale/blob/22ebb25e833264f58d7c3f534a8b166894a89536/net/tsaddr/tsaddr.go#L33
# Any other range is NOT supported, and it will cause unexpected issues.
ip_prefixes:
  - fd7a:115c:a1e0::/48
  - 100.64.0.0/10

# DERP is a relay system that Tailscale uses when a direct
# connection cannot be established.
# https://tailscale.com/blog/how-tailscale-works/#encrypted-tcp-relays-derp
#
# headscale needs a list of DERP servers that can be presented
# to the clients.
derp:
  server:
    # If enabled, runs the embedded DERP server and merges it into the rest of the DERP config
    # The Headscale server_url defined above MUST be using https, DERP requires TLS to be in place
    enabled: false

    # Region ID to use for the embedded DERP server.
    # The local DERP prevails if the region ID collides with other region ID coming from
    # the regular DERP config.
    region_id: 999

    # Region code and name are displayed in the Tailscale UI to identify a DERP region
    region_code: "headscale"
    region_name: "Headscale Embedded DERP"

    # Listens over UDP at the configured address for STUN connections - to help with NAT traversal.
    # When the embedded DERP server is enabled stun_listen_addr MUST be defined.
    #
    # For more details on how this works, check this great article: https://tailscale.com/blog/how-tailscale-works/
    stun_listen_addr: "0.0.0.0:3478"

  # List of externally available DERP maps encoded in JSON
  urls:
    - https://controlplane.tailscale.com/derpmap/default

  # Locally available DERP map files encoded in YAML
  #
  # This option is mostly interesting for people hosting
  # their own DERP servers:
  # https://tailscale.com/kb/1118/custom-derp-servers/
  #
  # paths:
  #   - /etc/headscale/derp-example.yaml
  paths: []

  # If enabled, a worker will be set up to periodically
  # refresh the given sources and update the derpmap
  # will be set up.
  auto_update_enabled: true

  # How often should we check for DERP updates?
  update_frequency: 24h

# Disables the automatic check for headscale updates on startup
disable_check_updates: false

# Time before an inactive ephemeral node is deleted?
ephemeral_node_inactivity_timeout: 30m

# Period to check for node updates within the tailnet. A value too low will severely affect
# CPU consumption of Headscale. A value too high (over 60s) will cause problems
# for the nodes, as they won't get updates or keep alive messages frequently enough.
# In case of doubts, do not touch the default 10s.
node_update_check_interval: 10s

# SQLite config
db_type: sqlite3

# For production:
db_path: /var/lib/headscale/db.sqlite

# # Postgres config
# If using a Unix socket to connect to Postgres, set the socket path in the 'host' field and leave 'port' blank.
# db_type: postgres
# db_host: localhost
# db_port: 5432
# db_name: headscale
# db_user: foo
# db_pass: bar

# If other 'sslmode' is required instead of 'require(true)' and 'disabled(false)', set the 'sslmode' you need
# in the 'db_ssl' field. Refers to https://www.postgresql.org/docs/current/libpq-ssl.html Table 34.1.
# db_ssl: false

### TLS configuration
#
## Let's encrypt / ACME
#
# headscale supports automatically requesting and setting up
# TLS for a domain with Let's Encrypt.
#
# URL to ACME directory
acme_url: https://acme-v02.api.letsencrypt.org/directory

# Email to register with ACME provider
acme_email: ""

# Domain name to request a TLS certificate for:
tls_letsencrypt_hostname: ""

# Path to store certificates and metadata needed by
# letsencrypt
# For production:
tls_letsencrypt_cache_dir: /var/lib/headscale/cache

# Type of ACME challenge to use, currently supported types:
# HTTP-01 or TLS-ALPN-01
# See [docs/tls.md](docs/tls.md) for more information
tls_letsencrypt_challenge_type: HTTP-01
# When HTTP-01 challenge is chosen, letsencrypt must set up a
# verification endpoint, and it will be listening on:
# :http = port 80
tls_letsencrypt_listen: ":http"

## Use already defined certificates:
tls_cert_path: ""
tls_key_path: ""

log:
  # Output formatting for logs: text or json
  format: text
  level: info

# Path to a file containg ACL policies.
# ACLs can be defined as YAML or HUJSON.
# https://tailscale.com/kb/1018/acls/
acl_policy_path: ""

## DNS
#
# headscale supports Tailscale's DNS configuration and MagicDNS.
# Please have a look to their KB to better understand the concepts:
#
# - https://tailscale.com/kb/1054/dns/
# - https://tailscale.com/kb/1081/magicdns/
# - https://tailscale.com/blog/2021-09-private-dns-with-magicdns/
#
dns_config:
  # Whether to prefer using Headscale provided DNS or use local.
  override_local_dns: true

  # List of DNS servers to expose to clients.
  nameservers:
    - 1.1.1.1

  # NextDNS (see https://tailscale.com/kb/1218/nextdns/).
  # "abc123" is example NextDNS ID, replace with yours.
  #
  # With metadata sharing:
  # nameservers:
  #   - https://dns.nextdns.io/abc123
  #
  # Without metadata sharing:
  # nameservers:
  #   - 2a07:a8c0::ab:c123
  #   - 2a07:a8c1::ab:c123

  # Split DNS (see https://tailscale.com/kb/1054/dns/),
  # list of search domains and the DNS to query for each one.
  #
  # restricted_nameservers:
  #   foo.bar.com:
  #     - 1.1.1.1
  #   darp.headscale.net:
  #     - 1.1.1.1
  #     - 8.8.8.8

  # Search domains to inject.
  domains: []

  # Extra DNS records
  # so far only A-records are supported (on the tailscale side)
  # See https://github.com/juanfont/headscale/blob/main/docs/dns-records.md#Limitations
  # extra_records:
  #   - name: "grafana.myvpn.example.com"
  #     type: "A"
  #     value: "100.64.0.3"
  #
  #   # you can also put it in one line
  #   - { name: "prometheus.myvpn.example.com", type: "A", value: "100.64.0.3" }

  # Whether to use [MagicDNS](https://tailscale.com/kb/1081/magicdns/).
  # Only works if there is at least a nameserver defined.
  magic_dns: true

  # Defines the base domain to create the hostnames for MagicDNS.
  # `base_domain` must be a FQDNs, without the trailing dot.
  # The FQDN of the hosts will be
  # `hostname.user.base_domain` (e.g., _myhost.myuser.example.com_).
  base_domain: example.com

# Unix socket used for the CLI to connect without authentication
# Note: for production you will want to set this to something like:
unix_socket: /var/run/headscale/headscale.sock
unix_socket_permission: "0770"
#
# headscale supports experimental OpenID connect support,
# it is still being tested and might have some bugs, please
# help us test it.
# OpenID Connect
# oidc:
#   only_start_if_oidc_is_available: true
#   issuer: "https://your-oidc.issuer.com/path"
#   client_id: "your-oidc-client-id"
#   client_secret: "your-oidc-client-secret"
#   # Alternatively, set `client_secret_path` to read the secret from the file.
#   # It resolves environment variables, making integration to systemd's
#   # `LoadCredential` straightforward:
#   client_secret_path: "${CREDENTIALS_DIRECTORY}/oidc_client_secret"
#   # client_secret and client_secret_path are mutually exclusive.
#
#   # The amount of time from a node is authenticated with OpenID until it
#   # expires and needs to reauthenticate.
#   # Setting the value to "0" will mean no expiry.
#   expiry: 180d
#
#   # Use the expiry from the token received from OpenID when the user logged
#   # in, this will typically lead to frequent need to reauthenticate and should
#   # only been enabled if you know what you are doing.
#   # Note: enabling this will cause `oidc.expiry` to be ignored.
#   use_expiry_from_token: false
#
#   # Customize the scopes used in the OIDC flow, defaults to "openid", "profile" and "email" and add custom query
#   # parameters to the Authorize Endpoint request. Scopes default to "openid", "profile" and "email".
#
#   scope: ["openid", "profile", "email", "custom"]
#   extra_params:
#     domain_hint: example.com
#
#   # List allowed principal domains and/or users. If an authenticated user's domain is not in this list, the
#   # authentication request will be rejected.
#
#   allowed_domains:
#     - example.com
#   # Note: Groups from keycloak have a leading '/'
#   allowed_groups:
#     - /headscale
#   allowed_users:
#     - alice@example.com
#
#   # If `strip_email_domain` is set to `true`, the domain part of the username email address will be removed.
#   # This will transform `first-name.last-name@example.com` to the user `first-name.last-name`
#   # If `strip_email_domain` is set to `false` the domain part will NOT be removed resulting to the following
#   user: `first-name.last-name.example.com`
#
#   strip_email_domain: true

# Logtail configuration
# Logtail is Tailscales logging and auditing infrastructure, it allows the control panel
# to instruct tailscale nodes to log their activity to a remote server.
logtail:
  # Enable logtail for this headscales clients.
  # As there is currently no support for overriding the log server in headscale, this is
  # disabled by default. Enabling this will make your clients send logs to Tailscale Inc.
  enabled: false

# Enabling this option makes devices prefer a random port for WireGuard traffic over the
# default static port 41641. This option is intended as a workaround for some buggy
# firewall devices. See https://tailscale.com/kb/1181/firewalls/ for more information.
randomize_client_port: false

6. 下载配置文件

wget https://github.com/juanfont/headscale/raw/main/config-example.yaml -O /etc/headscale/config.yaml

• 修改配置文件，将server_url改为公网域名或者IP，国内服务器域名必须要备案；

• 如果暂时用不到DNS功能，可以将magin_dns设置为false；

• server_url 设置为 http://<PUBLIC_IP>:8080，将 <PUBLIC_IP> 替换为公网 IP 或者域名；

• 可自定义私有网段，也可同时开启 IPv4 和 IPv6：

  ip_prefixes:
    - fd7a:115c:a1e0::/48
    - 100.64.0.0/10

7. 创建SystemD service配置文件

vim /etc/systemd/system/headscale.service

[Unit]
Description=headscale controller
After=syslog.target
After=network.target

[Service]
Type=simple
User=headscale
Group=headscale
ExecStart=/usr/local/bin/headscale serve
Restart=always
RestartSec=5

# Optional security enhancements
NoNewPrivileges=yes
PrivateTmp=yes
ProtectSystem=strict
ProtectHome=yes
ReadWritePaths=/var/lib/headscale /var/run/headscale
AmbientCapabilities=CAP_NET_BIND_SERVICE
RuntimeDirectory=headscale

[Install]
WantedBy=multi-user.target

8. 创建headscale用户

useradd headscale -d /home/headscale -m

9. 修改配置文件的owner

chown -R headscale:headscale /var/lib/headscale

10. 创建必须的文件夹

mkdir -p /var/run/headscale/

12. 修改配置文件unix_socket

unix_socket: /var/run/headscale/headscale.sock

13. 重载新的配置文件

sudo systemctl daemon-reload

14. 启动Headscale并设置开机自动启动

sudo systemctl enable --now headscale

15. 查看运行状态

sudo systemctl status headscale

16. 查看占用端口

ss -tulnp|grep headscale

17. 创建namespace

Tailscale中有有一个概念叫做tailnet，可以理解为租户。租户和租户之间是相互隔离的，具体可查看tailscale的官方文档.

Headscale中也有类似的实现叫做namespace.

Headcale类似的实现叫做user.

需要先创建一个user，以便后续客户端接入。

headscale users create fly97

18. 查看命名空间

headscale namespaces list

docker-compose部署

version: '3'
services:
  headscale:
    user: root
    image: headscale/headscale
    container_name: headscale
    network_mode: host
    cap_add:
      - CAP_NET_BIND_SERVICE
    command: headscale serve
    volumes:
      - ./config.yaml:/etc/headscale/config.yaml
      - ./db.sqlite:/var/lib/headscale/db.sqlite
      - ./ssl/221.12.170.100.crt:/221.12.170.100.crt
      - ./ssl/221.12.170.100.key:/221.12.170.100.key
      #- ./headscale.sock:/var/run/headscale.sock

接入Headscale

Mac OS客户端接入

首先需要在服务端创建命名空间

headscale users create fly97

客户端下载参考Tailscale。

安装完毕以后打开http://<headscale_ip>:<port>/apple，会出现如下页面

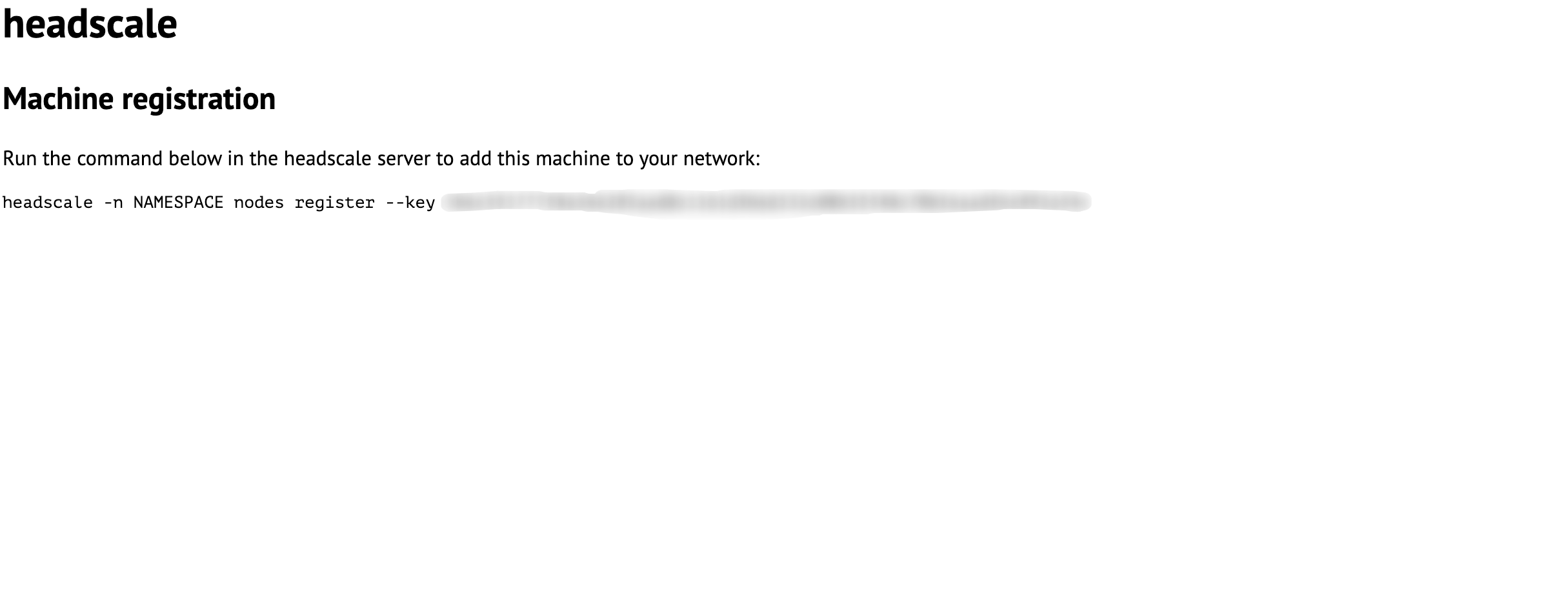

按照上图所说，安装描述文件，然后重新打开Tailscale APP，点击登录，会自动打开如下的页面：

在安装headscale的机器上，执行上面所示的命令，就可以把节点加入到网络中。

Linux 客户端接入

首先在headscale生成api key，-n 用于指定命名空间

headscale preauthkeys create -e 24h -u fly97

然后在tailscale客户端接入，将authkey替换成上文生成的key

login_server=http://xx.xx
authkey=xxxx
route=xxxx
sudo tailscale up --login-server=${login_server} --accept-routes=false --accept-dns=false --advertise-routes=$route --authkey ${authkey}

打通局域网

假设内网有一台 Linux 主机（比如 OpenWrt）安装了 Tailscale 客户端，希望其他 Tailscale 客户端可以直接通过家中的局域网 IP（例如 192.168.100.0/24） 访问内网的任何一台设备；

配置方法很简单，首先需要设置 IPv4 与 IPv6 路由转发：

echo 'net.ipv4.ip_forward = 1' | tee /etc/sysctl.d/ipforwarding.conf
echo 'net.ipv6.conf.all.forwarding = 1' | tee -a /etc/sysctl.d/ipforwarding.conf
sysctl -p /etc/sysctl.d/ipforwarding.conf

客户端修改注册节点的命令，在原来命令的基础上加上参数 --advertise-routes=192.168.100.0/24。

login_server=http://xx.xx
authkey=xxxx
route=xxxx
sudo tailscale up --login-server=${login_server} --accept-routes=false --accept-dns=false --advertise-routes=$route --authkey ${authkey}

PS：这里不能加入accept-routes=true，这样会导致当前节点访问当前路由时，强制走derp-server的流量。

在headscale服务端启动路由，首先需要查看要启用节点的id，假设这个id是1

headscale routes list

根据ID启动路由

headscale routes enable -i 1

Windows 客户端接入

访问以下连接

https://<headscale_ip>:<port>/windows

一些常见的命令

查看链接状态

$tailscale status
192.168.7.1     mac-mini-bj4beb75    default      macOS   -
                deepsoft-ci-0cf7bgtj default      linux   active; direct 221.12.170.99:41642; offline, tx 24760 rx 98248
                deepsoft-desktop-xdcbicir default      linux   active; direct 221.12.170.98:41641; offline, tx 16404 rx 21900

查看darp连接

$tailscale status
2022/06/25 14:17:34 portmap: [v1] Got PMP response; IP:xxx, epoch: 683007
2022/06/25 14:17:34 portmap: [v1] Got PCP response: epoch: 683007
2022/06/25 14:17:34 portmap: [v1] UPnP reply {Location:http://192.168.15.1:5000/rootDesc.xml Server:OpenWRT/5.10.107 UPnP/1.1 MiniUPnPd/2.2.3 USN:uuid:d38cfa50-cc98-48d8-8e37-2c97c660b8aa::urn:schemas-upnp-org:device:InternetGatewayDevice:2}, "HTTP/1.1 200 OK\r\nCACHE-CONTROL: max-age=120\r\nST: urn:schemas-upnp-org:device:InternetGatewayDevice:2\r\nUSN: uuid:d38cfa50-cc98-48d8-8e37-2c97c660b8aa::urn:schemas-upnp-org:device:InternetGatewayDevice:2\r\nEXT:\r\nSERVER: OpenWRT/5.10.107 UPnP/1.1 MiniUPnPd/2.2.3\r\nLOCATION: http://192.168.15.1:5000/rootDesc.xml\r\nOPT: \"http://schemas.upnp.org/upnp/1/0/\"; ns=01\r\n01-NLS: 1655692518\r\nBOOTID.UPNP.ORG: 1655692518\r\nCONFIGID.UPNP.ORG: 1337\r\n\r\n"
2022/06/25 14:17:34 portmap: UPnP meta changed: {Location:http://192.168.15.1:5000/rootDesc.xml Server:OpenWRT/5.10.107 UPnP/1.1 MiniUPnPd/2.2.3 USN:uuid:d38cfa50-cc98-48d8-8e37-2c97c660b8aa::urn:schemas-upnp-org:device:InternetGatewayDevice:2}

Report:
	* UDP: false
	* IPv4: (no addr found)
	* IPv6: no
	* MappingVariesByDestIP:
	* HairPinning:
	* PortMapping: UPnP, NAT-PMP, PCP
	* Nearest DERP: unknown (no response to latency probes)

由于我这里通过p2p打洞就建立了连接，同时没有导入Tailscale的中继节点，因此这里无法获得darp连接。

其他情况应该是

$ tailscale netcheck

Report:
        * UDP: true
        * IPv4: yes, xxxxx:57068
        * IPv6: no
        * MappingVariesByDestIP: false
        * HairPinning: false
        * PortMapping:
        * Nearest DERP: Tencent Hongkong
        * DERP latency:
                - thk: 39.7ms (Tencent Hongkong)
